Paddy Huller
Paddy Huller, Rice Milling Machine
The paddy huller is designed to accurately remove the rice husk. Its vibrating feeder gently guides each grain precisely between two rubber rollers to prevent grain breakage.
Features
- Rubber rolls
The rubber rolls are automatically controlled using pneumatic components. They will automatically close when grain is detected. - Vibrating feeder
It uses a vibrating feeder to gently guide grain into the slide. The lengthened slide reduces the grain’s drop impact, thus minimizing the breakage rate. - Double-pivot structure
The double-pivot allows the machine to run more smoothly. - Easy to adjust
It uses a pressure regulating valve to adjust the pressure between the rubber rolls. The air suction and material flow volumes are both adjustable via the adjustment handle.
Specifications
| Model | SLJ-MLGQ25C | SLJ-MLGQ51 | SYX-MLGQ25E | SYX-MLGQ25E*3 |
| Input Capacity (T/H) | 3-5 | 6-8 | 3.5-5.5 | 10-12 |
| Power (kW) | 7.5 | 11 | 7.5+4 | 7.5*3+1.5 |
| Dedusting Connection (M³/Min) | 56-61 | 83-91 | 56-61 | 160-180 |
| Weight (Kg) | 900 | 1000 | 1170 | 1500 |
| Dimensions (L*W*H)(mm) | 1620*1340*2410 | 1690*1520*2500 | 1758*1505*2722 | 4250*1465*3040 |
| Rubber Roll Dimensions (Φ*L)(mm) | 254*254 | 254*508 | 254*254 | 254*254 |
Working Principle
The paddy huller uses two rubber rolls to squeeze the grain for separating the husk and rice paddy. It uses an airflow to blow husks and rice to separate them and send them to the respective collection boxes. This airflow also helps cool the rolls, while the rubber roll pressure is also adjustable to suit different paddy rice types. The air suction and material flow volume are both adjustable.
Core Components
Synchronous drive conveyor belt
Double-pivot structure
Slide

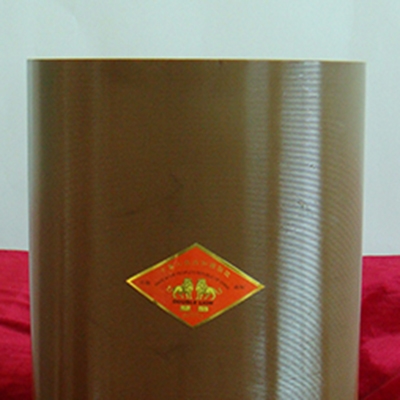

Rubber rolls
Samples
Finished product
Grain
Husk
Structure Diagram
